Specifications

• Type of instrument :

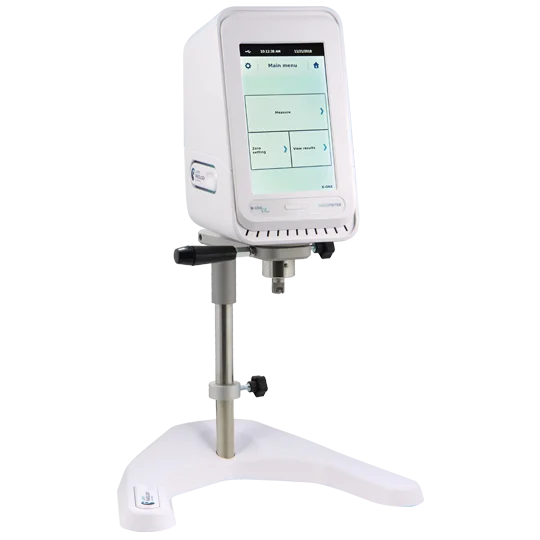

  Rotating springless viscometer with 7’’ Touch screen

• Rotation speeds :

  Unlimited number of speeds between 0.3 and 250 rpm

• Torque range :

  Standard Version : 0.05 to 13 mNm LR Version : 0.005 to 0.8 mNm

• Accuracy :

  +/- 1 % of the full scale

• Repeatability :

  +/- 0,2 %

• Display :

  Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque (%-mNm) – Shear stress – Time – Temperature (in option)

• Compatible accessories :

  Carrying case
  External temperature probe -50°C to +300°C
  HELIPRO stand
  Barcode reader with stand and cable
  Bayonet spindle rack
  Touch screen protector
  Viscosity standards oil
  Small volume package
  Small volume package
  THERMOCELL package
  GuardLeg RV
  GuardLeg LV

• Security and confidentiality :

  An «operator» function allows you to enter a username for your
  instrument. This user must then be identified using a 4-digit code.
  There is also a protected mode that locks your measurement
  conditions.

• Languages :

  French/English/Russian/Spanish/Turkish/German/Italian/Korean/Portuguese/Ukrainian

• Compatible measuring systems :

  MS RV/LV, MS BV, MS VANE, MS SV, MS ULV
  MS-DIN, MS KREBS,

• Compatible temperature control :

  EVA LR-BV PLUS, RT-1 PLUS, EVA MS-DIN PLUS

• Supply voltage :

  90-240 VAC 50/60 Hz

• PC connections :

  USB Port

• Dimensions and weight :

  Head: D115 x H243 x W138 mm
  stand: L340 x W305 x H70 mm
  Stainless steel rod: Length 500 mm
  Weight: 6.1 kg
